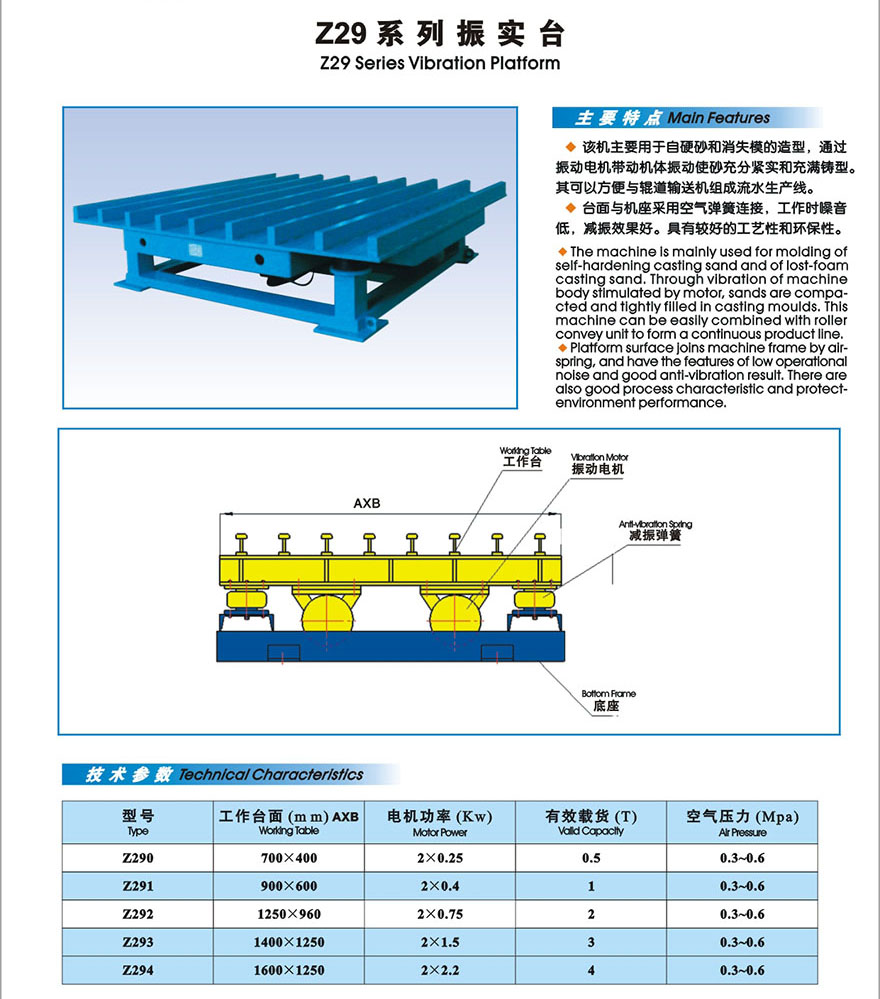

ZXZ29系列振實臺(Vibrating table)
該機主要用于樹脂砂和消失模等造型時，通過振動電機帶動機體振動使砂充分緊實和充滿鑄型?？梢耘c輥道輸送機組成流水生產線。其臺面與機座采用空氣彈簧連接，工作時噪音低，減振效果好.具有較好的工藝性和環保性。
It is mainly used in resin-boned sand and film; the vibrating engine will make the sand jolt compaction. Together with pipe conveyor, they can make up a production line. The air spring links the table and the base. While working, it makes little noise, and it is better to decrease vibrating, enjoying techniques & environment-friendly.
ZXZ29系列振實臺參數(Technical References of Vibrating table )：
|
型 號 |
工作臺面（m m） |
電機功率（Kw） |
有效載貨(T) |
空氣壓力
(MPa) |
|
ZXZ290 |
700×400 |
2×0.25 |
0.5 |
0.3~0.6 |
|
ZXZ291 |
900×600 |
2×0.4 |
1 |
0.3~0.6 |
|
ZXZ292 |
1250×960 |
2×0.75 |
2 |
0.3~0.6 |
|
ZXZ293 |
1400×1250 |
2×1.5 |
3 |
0.3~0.6 |
|
ZXZ294 |
1600×1250 |
2×2.2 |
4 |
0.3~0.6 |

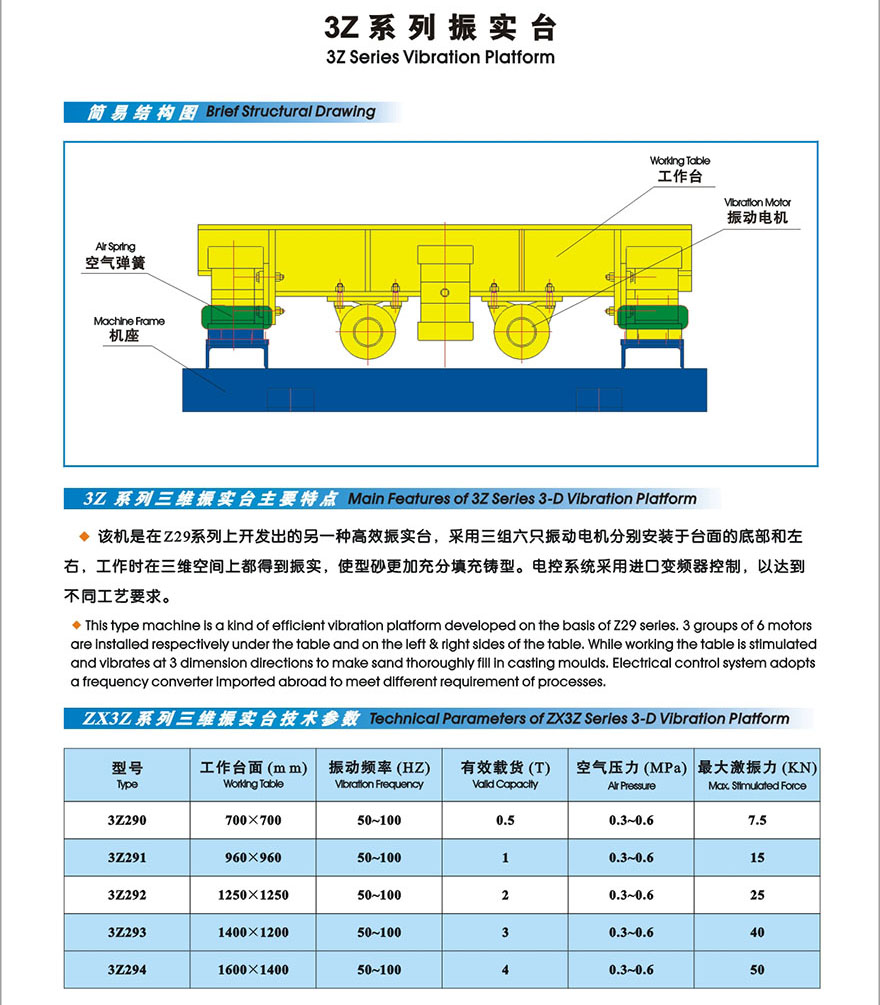

ZX3Z系列三維振實臺(Three-dimensional Vibrating Table)
其是在ZXZ29系列上開發出的另一種高效振實臺，采用三組六只振動電機分別安裝于臺面的底部和左右，工作時在三維空間上都得到振實，使型砂更充分填充鑄型。電控系統采用進口變頻器控制，以達到不同工藝要求。
Three-dimensional Vibrating Table is a kind of high-efficient vibrating table upgraded upon zxz29. It contains six vibrating engines respectively located at the base of the table, while it works; it vibrates the table in three-dimensional space, and makes the sand jolt compaction. Imported electrical control system will satisfy deferent requirements.
ZX3Z系列三維振實臺參數
(Technical References of Three-dimensional Vibrating Table)：
型 號
(Type) |
工作臺面
（m m） |
振動頻率（HZ） |
有效載貨(T) |
空氣壓力(MPa) |
*大激振力（KN） |
|
ZX3Z290 |
700×700 |
50-100 |
0.5 |
0.3~0.6 |
7.5 |
|
ZX3Z291 |
960×960 |
50 |
1 |
0.3~.6 |
15 |
|
ZX3Z292 |
1250×1250 |
50 |
2 |
0.3~0.6 |
25 |
|
ZX3Z293 |
1400×1200 |
50 |
3 |
0.3~0.6 |
40 |
|
ZX3Z294 |
1600×1400 |
50-100 |
4 |
0.3~0.6 |
50 |
